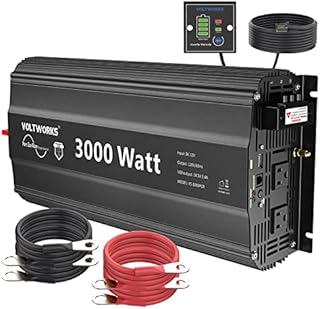

3000W Pure Sine Wave Inverter 12V DC to 120V AC Converter for Home RV Truck Off-Grid Solar Power Inverter 12V to 110V with 5V 2.4A USB Port AC Hardwire Remote Controller by VOLTWORKS Black by Amazon.com
$195.99$259.99
Description
3000W Pure sine Wave Inverter Specification
Continuous Output
3000 Watts
Input Voltage
Rated 12Vdc (10-16V for lead acid battery,Please refer to the battery manual for other types of batteries)
Output Voltage
AC 120V 10% 60Hz1Hz
Low Voltage Alarm
9.8V0.3V (Please refer to the battery manual for lithium battery )
Low Voltage Shut-off
9.5V0.5V (Please refer to the battery manual for lithium battery
High Voltage Shut-off
16V0.5V (Please refer to the battery manual for lithium battery
USB Output Current
5V 2.4A USB Ports
Working Temperature
0°C~40°C/ (32°F~104°F)
Output Wave
Pure Sine Wave ( True Sine Wave )
THD
3%
Intelligent fan
only works when temperature higher than 355°C
No load current
1A
Built-in protections
Overload protection,Over voltage protection,Low voltage protection,Over heat protection,Short circuit protection
Packing list
3000W Pure Sine Wave Inverter, two pairs of 4AWG Battery cables, 30ft remote controller, 3ft ground wire, 8pcs shockproof pads,18 months service,AIG insurance
Important Notice
When you charge the 12V Lifepo4 battery by the solar controller,please set the solar charger current less than 14V.
Silent & Powerful cooling fan
For this 3000W Pure Sine Wave Inverter,its intelligent cooling fan works automatically when temperature reaches 355°C ,in order to save battery power and prolong the cooling fan life.Further more,we can enjoy a quiet environment, especially late at night.
Grounding Unit,Keep Safe
There is a 3ft ground wire in the box,please install it before using the 3000W Pure Sine Wave inverter.RV need to be grounded to avoid electric shocks and electrocution of any form.
Multiple outputs for selection
1*USB Port
(5VDCMax 2.4A)
2* AC 120v Outlets
1 AC 120v hardwire terminal block
for the electrical appliance power between 1500-3000W
This 3000W pure sine wave inverter is suitable for simultaneously charging most electronic devices,and Max output power of all outlets is 3000W.
Aluminum Alloy Housing
This 3000W pure sine wave inverter is selected high quality aluminum alloy material, fireproof and durable, good heat dissipation performance. Easy to install on the wall or ground.
Pure copper terminal
The connection of VOLTWORKS's High-power inverter is with ringend which can enlarge the contact surface and reduce theresistance,not easy to get high temperature.
Please install the battery cables in the order shown in above figure.
Intelligent protection and reminder
There are full protections built-in the 3000W pure sine wave inverter.When the inverter failure alarm will sound, the fault light will be lit. Smart protection features better protect your battery and devices.
SKU
VS-600PB
VS-1000PB
VS-1500PCR
VS-2000PCR
VS-3000PCR
VS-2000PBR24V
Output Wave
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
Rated Power
600Watt
1000Watt
1500Watt
2000Watt
3000Watt
2000W
DC Input
12v
12v
12v
12v
12v
24V
USB port
2x2.4A
2x2.4A
1x2.4A
1x2.4A
1x2.4A
2x2.4A
AC 120V outlets
2
3
3
2 with a hard wire terminal
2 with a hard wire terminal
2 with a hard wire terminal
LCD Display
Remote controller
Product information
- Brand:VOLTWORKS
- Power Source:Battery Powered
- Wattage:3000 watts
- Color:Black
- Item Dimensions LxWxH:18.3 x 8 x 3.9 inches
