Blood Oxygen Sensor Heart Rate Click GY-MAX30102 Sensor Optical Heart-Rate Monitor Module for Arduino

Blood Oxygen Sensor Heart Rate Click GY-MAX30102 Sensor Optical Heart-Rate Monitor Module for Arduino by Amazon.com

Currently Unavailable

Price last update: 25/05/2025

View deal

• Voltage: 3V-5V
• Optical Heart-Rate Monitor and Pulse Oximetry Solution
• Free Algorithm,Ultra-low power consumption
• Document link is https://tinyurl(DOT)com/MAX30102
• What you will get is: 1 X Heart Rate Click Sensor GY-MAX30102

Description

How does a MAX30102 work?
Pulse Oximeter measures oxygen saturation in our body. Oxygen enters the lungs and afterward is passed into the blood.
The blood conveys oxygen to the different organs in our body. The primary way oxygen is carried in our blood is by using hemoglobin.
You need to put your finger on the glass surface of the sensor, which allows the little light emissions through the blood and measures the oxygen level.
The oxygen level depends on the amount of light absorption in oxygenated or deoxygenated blood.
This sensor gives oxygen level as SpO2 parameter in percentage and heart rate in beats per minute (BPM).
Features:
- Optical Heart-Rate Monitor and Pulse Oximetry Solution
- Tiny 12.7mm x 12.7mm (0.5in x 0.5in) Board Size
- Low Power,Device Drivers
- Free Algorithm
- Example C Source Code For Arduino And mbed Platforms
- Test Data
- Competitive Advantages
- Highly-integrated, small-size sensor
- Non-chest based heart-rate/SpO2 detection
- Ultra-low power consumption

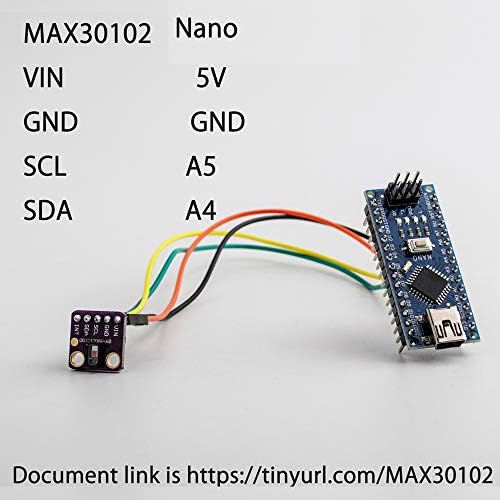

Connection
MAX30102---Ar duino
VIN----------------5V
GND--------------GND
SCL----------------A5
SDA---------------A4
Note:
- The glass on the sensor should be clean and, dont apply any INK over it.
- Put your finger in the correct place.
- Dont move your finger; wait for the sensor to get initialized.
- Document: h-ttps://tinyurl.com/MAX30102
Applications:
- Wearables
- Heart-rate monitor
- Pulse oximeter
